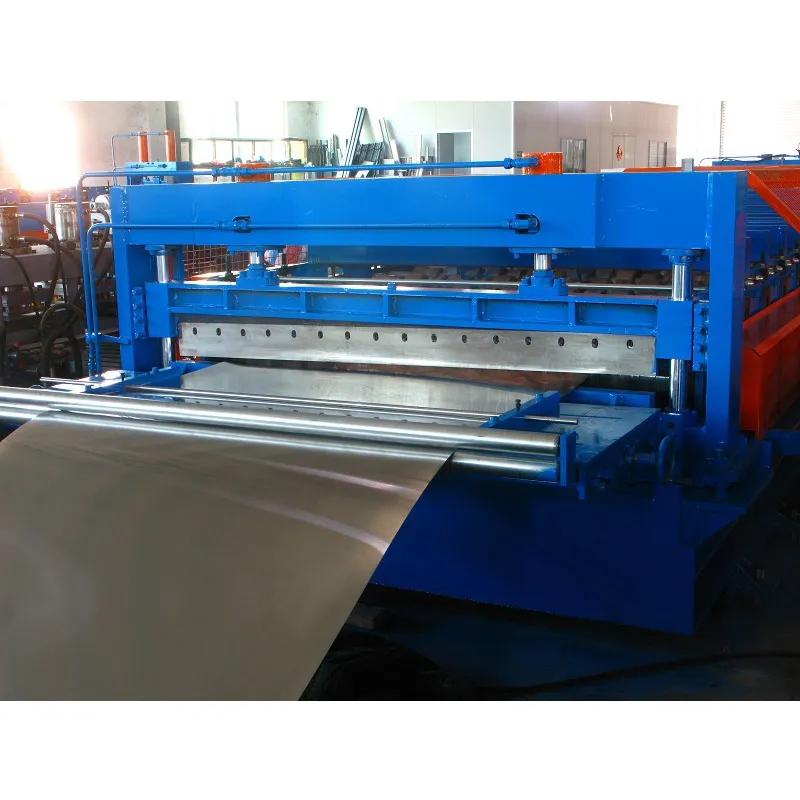

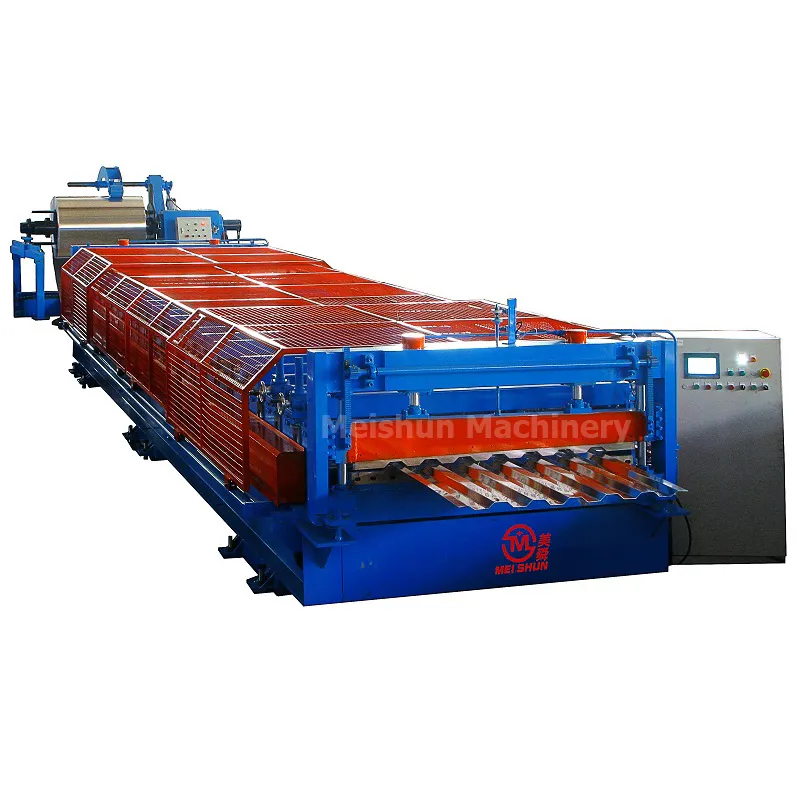

Carriage Panel Roll Forming Machine
MEI SHUN Automotive Panel Sheet Roll Forming Machine advantages
MEI SHUN roll forming machine work efficiency is high. The machine production speed can be set as customer’s requirement and stable operated by one staff.
The Newly durable ship container Panel Roll Forming Machine is designed for production of metal car panels with different designs. The production line consists of Decoiler - Main Roll Forming Mill - Post Cutter - Hydraulic Station - FLC Control Cabinet - Exit Rack.
Economical investment, the various technical performance indexes of the production line reaches the advanced level of same feild foreign products. It can completely replace the imported production line, but the price is much lower than foreign products.
- Meishun
- Xiamen
- 30-50 days
- 100 sets/annual
- Information
Carriage Board Car Panel Sheet Roll Forming Machine

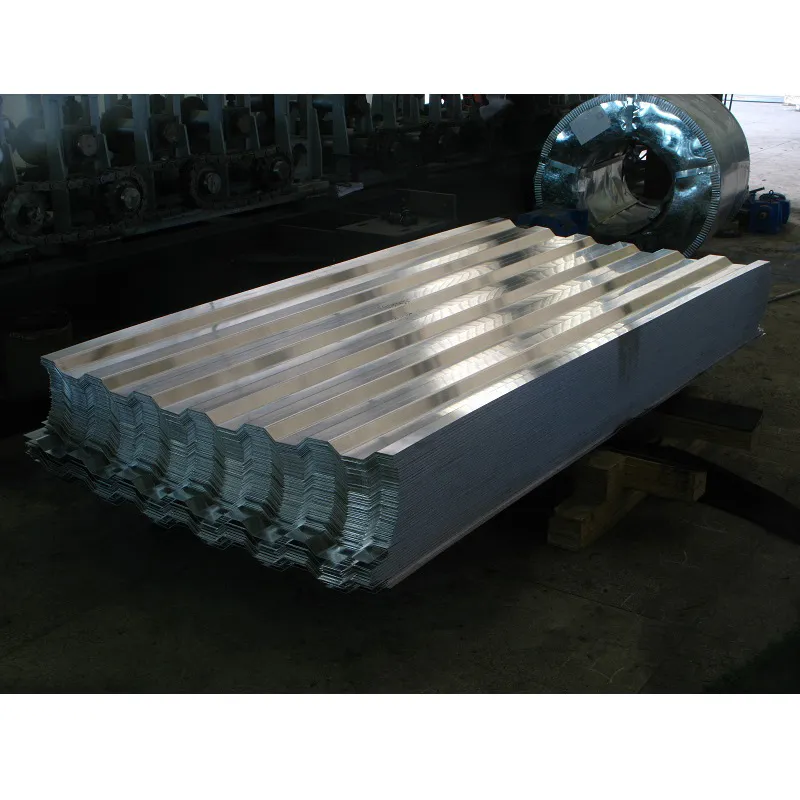

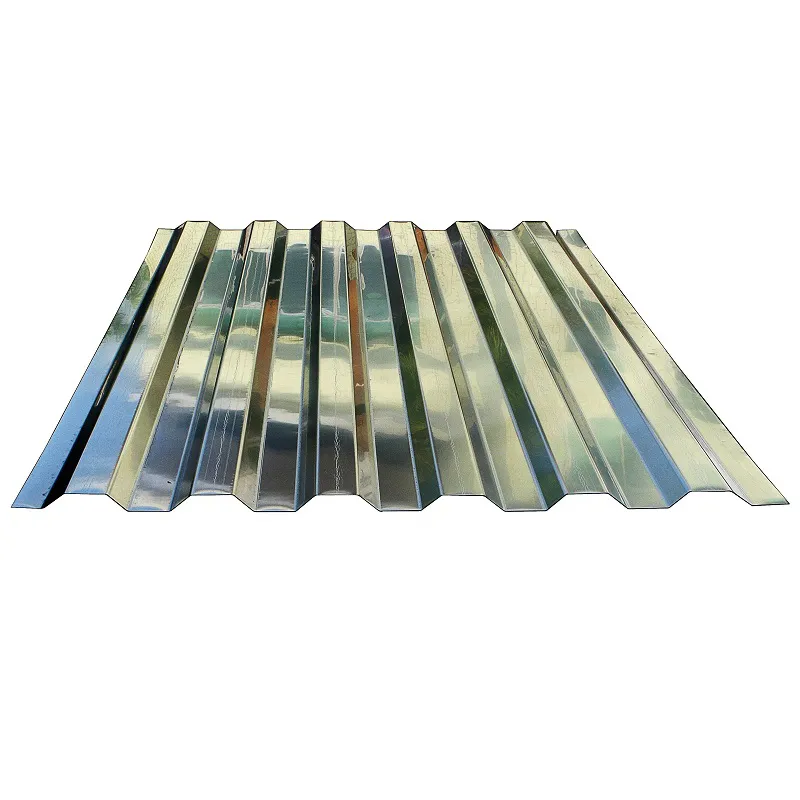

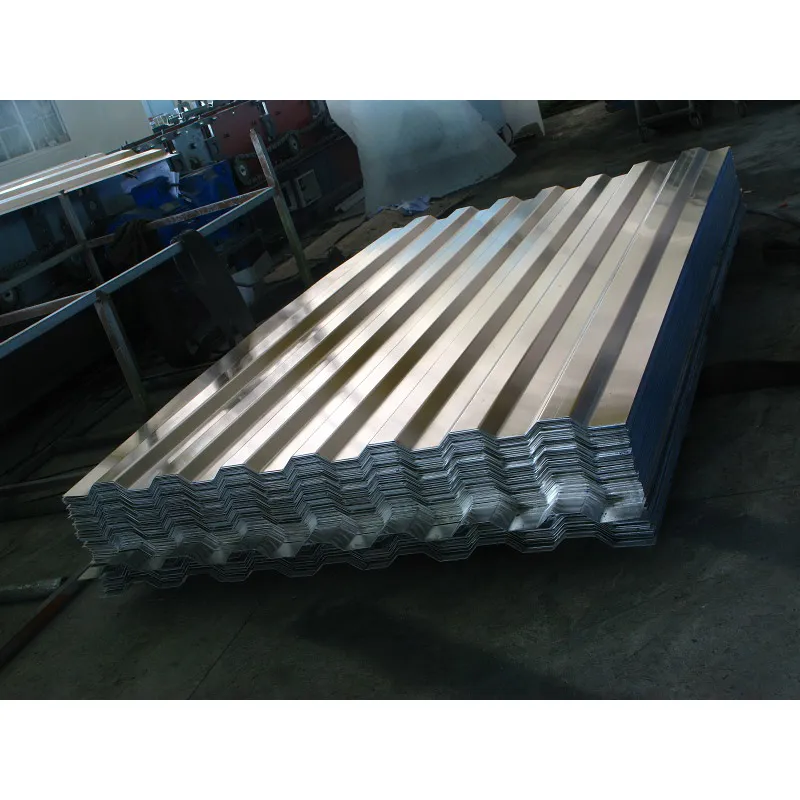

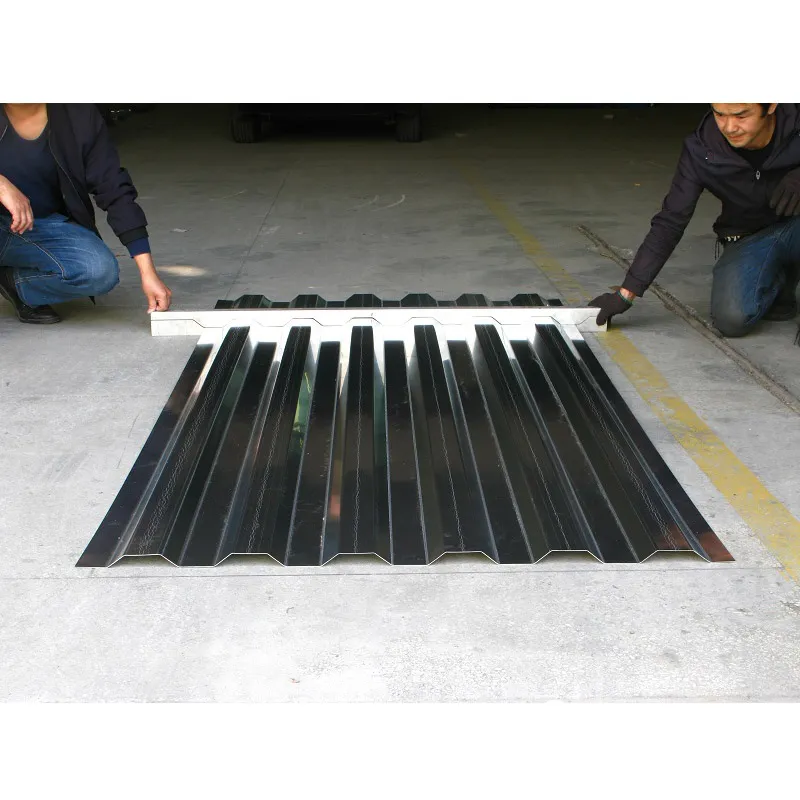

It is a machine used to produce the panel for the car body, and the finished product is steel panel for the car body. It is mostly used in all kinds of car body.
| Equipment Parameters | |
| Equipment Name: | MS26 - 186 - 1500 Roll Forming Machine |
| Forming Steps: | 22 groups roller |
| Equipment Components: | Decoiler - Main Roll Forming Mill - Post Cutter - Hydraulic Station - FLC Control Cabinet - Exit Rack |
| Equipment Size (L x W x H) | 9.0m x 2.1m x 1.2m |
| Main Motor Power | 15KW |
| Hydraulic Motor Power | 5.5KW |
| Equipment Total Weight | Approx. 12 tons |
| Feeding Material Width | 1600mm |
MEI SHUN roll forming machines are hot sale in southeast Asia, North Africa, south American, China mainland and get high praise from customer. Our customer includes KJ steel, Asia steel FEB, Air Flex HVAC, Roof Mart, Ala solar, Jiangshun group, Xingfa aluminum company, etc.
Our main engineers with 30 years’ experience in design, R&D and production. They are understanding customers’ different requirements, and satisfy well of customers’ all over the world.
Welcome sending your profile drawing & parameters, we will do customized cost effective and high performing roll forming machine as you want.
