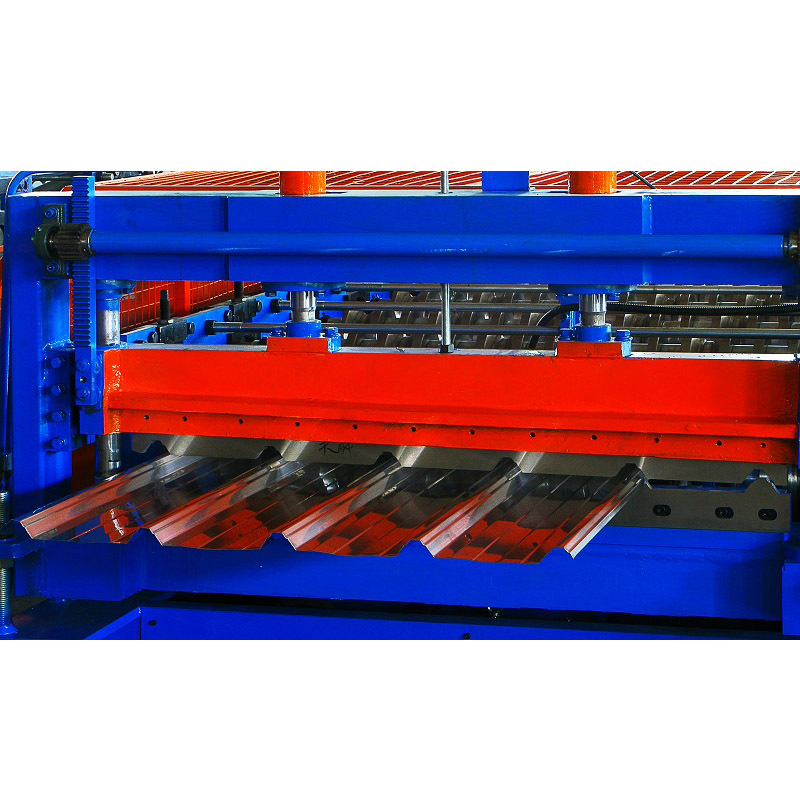

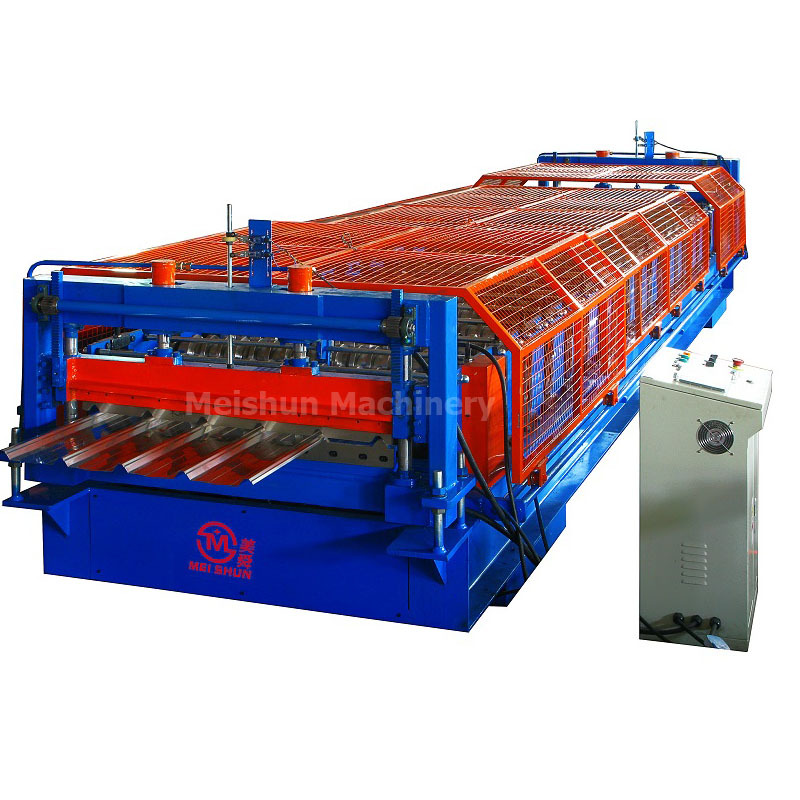

Pierce Fixed Roof Cladding Sheet Roll Forming Machine
MEI SHUN Pierce Fixed Roof Cladding Sheet Roll Forming Machine

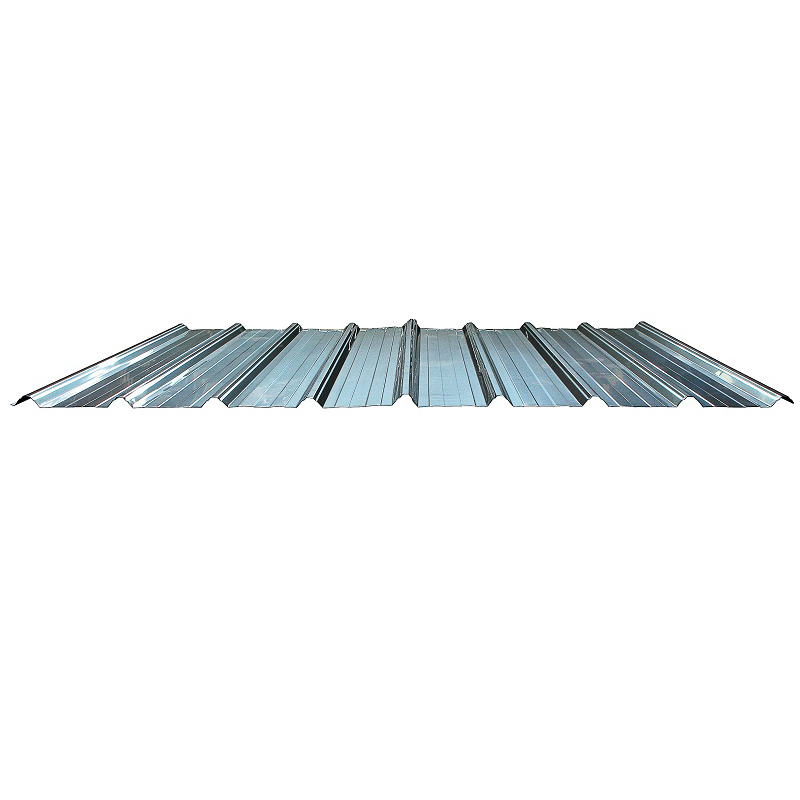

The metal roof panel produced by this Roof Panel Roll Forming Machine Line is a pierce fixed type with screw lockup. Its feature is low cost, convenient for mounting, therefore extensively applied in light steel frame factory buildings, warehouses, public buildings, etc. The metal roof panels have become the popular roofing panels.
Please feel free contact us and sending your profile drawing & parameters. Our cost effective and high performing roll forming machine will satisfy well your requirement.
- Meishun
- Xiamen
- 30-50 days
- 100 sets
- Information
Pierce Fixed Roof Cladding Sheet Roll Forming Machine
MEI SHUN roll forming machines are hot sale in southeast Asia, North Africa, south American, China mainland and get high praise from customer. Our customer includes KJ steel, Asia steel FEB, Air Flex HVAC, Roof Mart, Ala solar, Jiangshun group, Xingfa aluminum company, etc.
| Equipment Parameters | |
| Equipment Name: | MS24 - 210 - 840/1050 Roll Forming Machine |
| Forming Steps: | 20 groups roller |
| Equipment Components: | Decoiler - Main Roll Forming Mill - Post Cutter - Hydraulic Station - FLC Control Cabinet - Exit Rack |
| Equipment Size (L x W x H) | 8.5m x 1.8m x 1.2m |
| Main Motor Power | 7.5KW |
| Hydraulic Motor Power | 3KW |
| Equipment Total Weight | Approx. 8 tons |
| Feeding Material Width | 1000/1219mm |
Welcome sending your profile drawing & parameters, we will do customized cost effective and high performing roll forming machine as you want.
Our metal cold roll forming machine is Superior performance. Energy saving and environmental protection. The machine has long service life and reasonable structure.
