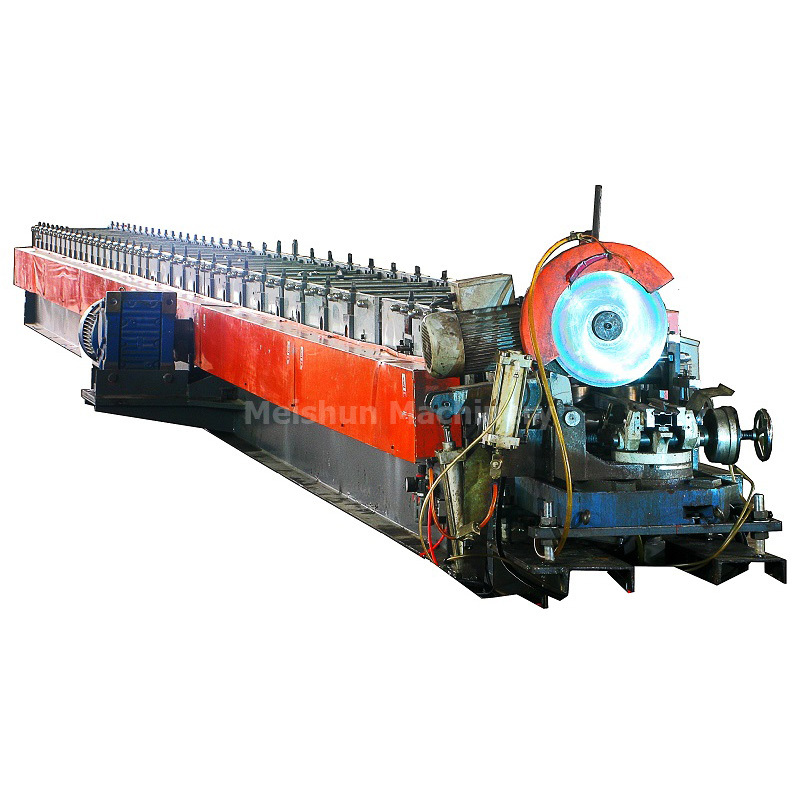

Fire Proof Window Frame Roll Forming Machine
MEI SHUN Fire Proof Window Frame Roll Forming Machine

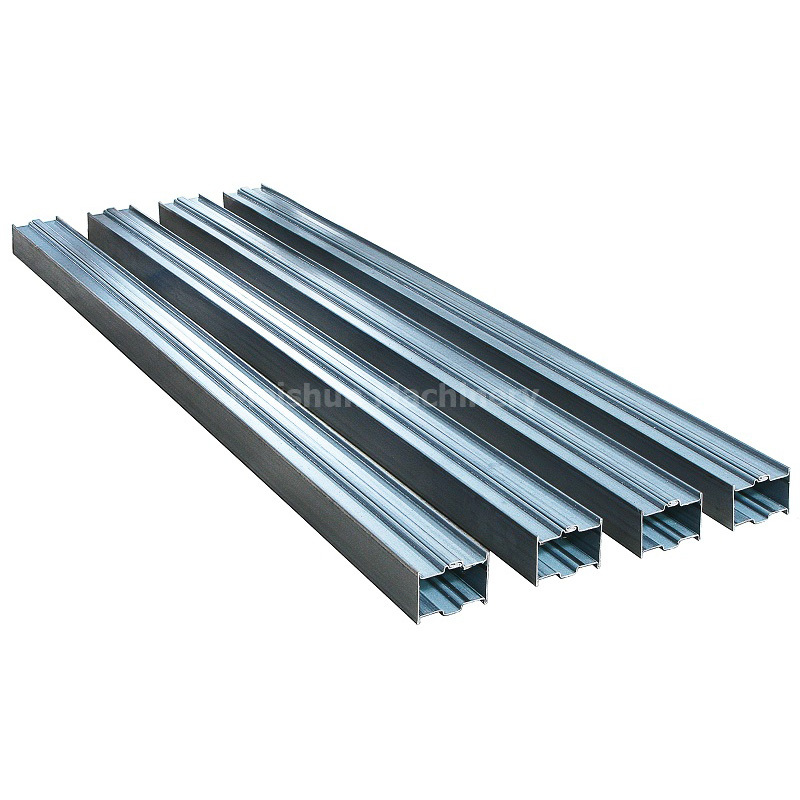

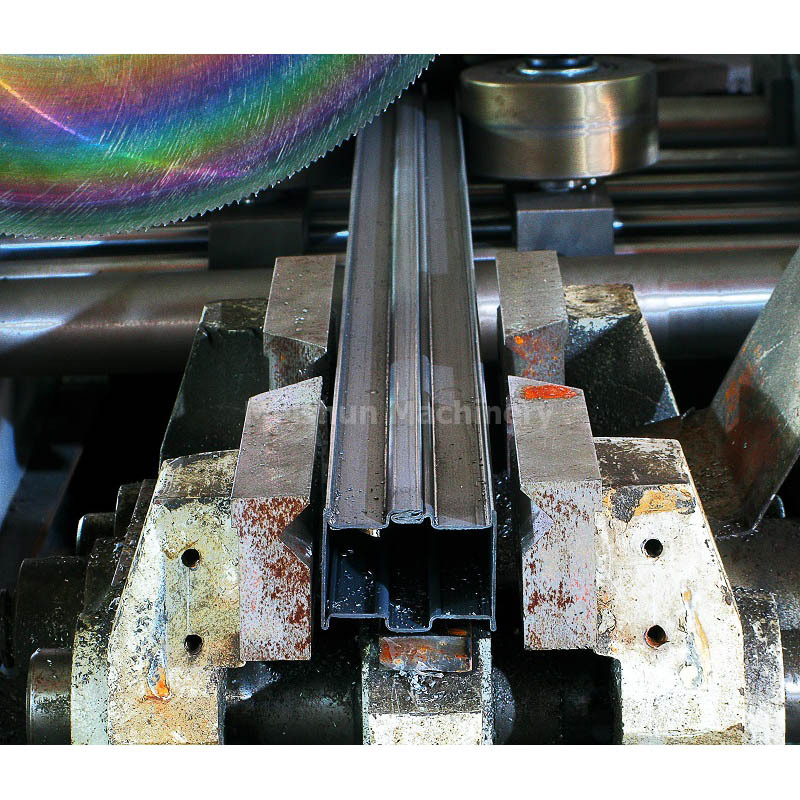

Our Fire Rated Window Frame Roll Forming Machine is designed to produce fire rated window frame (also called fire proof window frame /fire resistant window frame ), which are available for internal and external applications. Steel fire rated windows are a great solution for applications requiring certified fire resistance for both integrity and insulation and the added safety benefit of radiation protection. The machine consists of Decoiler - Main Roll Forming Mill - Sawing Device - Hydraulic Station - FLC Control Cabinet.
- Meishun
- Xiamen
- 30-50 days
- 100 sets
- Information
MEI SHUN roll forming machine work efficiency is high. One person can easily operate machine. The machine production speed can be set as customer’s requirement.
Fire Proof Window Frame Roll Forming Machine
| Equipment Parameters | |
| Equipment Name: | Fire Proof Window Frame Roll Forming Machine |
| Forming Steps: | 36 groups roller |
| Equipment Components: | Decoiler - Main Roll Forming Mill - Sawing Device - Hydraulic Station - FLC Control Cabinet |
| Equipment Size (L x W x H) | 16m x 1.2m x 1.2m |
| Main Motor Power | 22KW |
| Hydraulic Motor Power | 4KW |
| Equipment Total Weight | Approx. 13 tons |
Our roll forming machine with advantages like Fast running speed and wide application range. Easy maintenance.
High production precision and convenient operation: advanced PLC and touch screen control system are adopted.
Superior performance. Energy saving and environmental protection.
Please feel free contact us and sending your profile drawing & parameters. Our cost effective and high performing roll forming machine will satisfy well your requirement.
