Steel Door Frame Roll Forming Machine
MEI SHUN Steel Door Frame Roll Forming Machine advantages
High Quality Steel Door Frame Roll Forming Machine is for Steel Door Production Line. It is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.

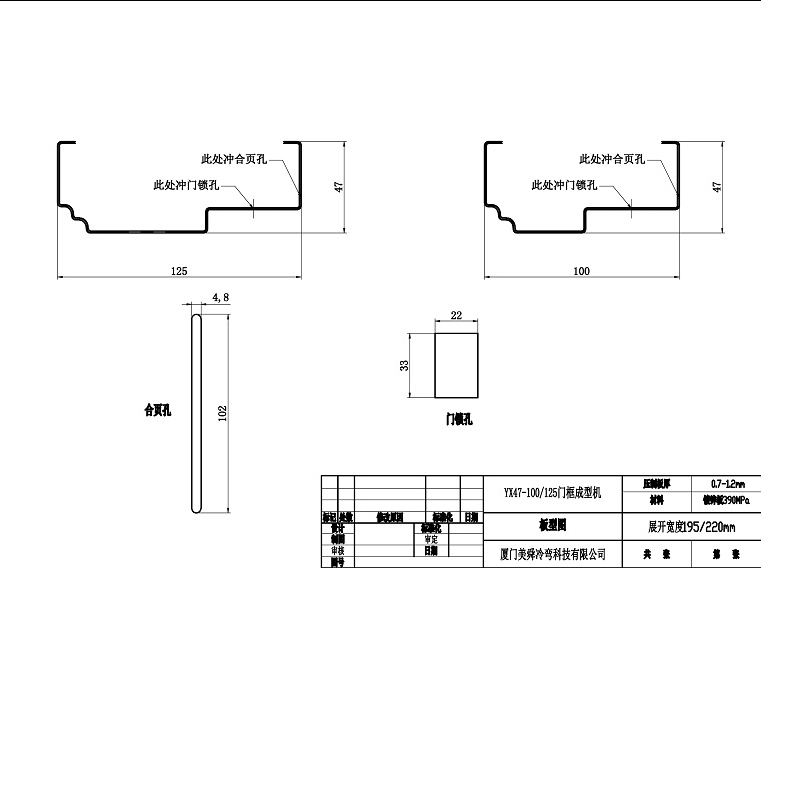

Please send us your profile drawing to make retailored door frame roll forming machine design for you.
- Meishun
- Xiamen
- 30-50 days
- 100 sets
- Information
MEI SHUN roll forming machines are hot sale in southeast Asia, North Africa, south American, China mainland and get high praise from customer. Our customer includes KJ steel, Asia steel FEB, Air Flex HVAC, Roof Mart, Ala solar, Jiangshun group, Xingfa aluminum company, etc.

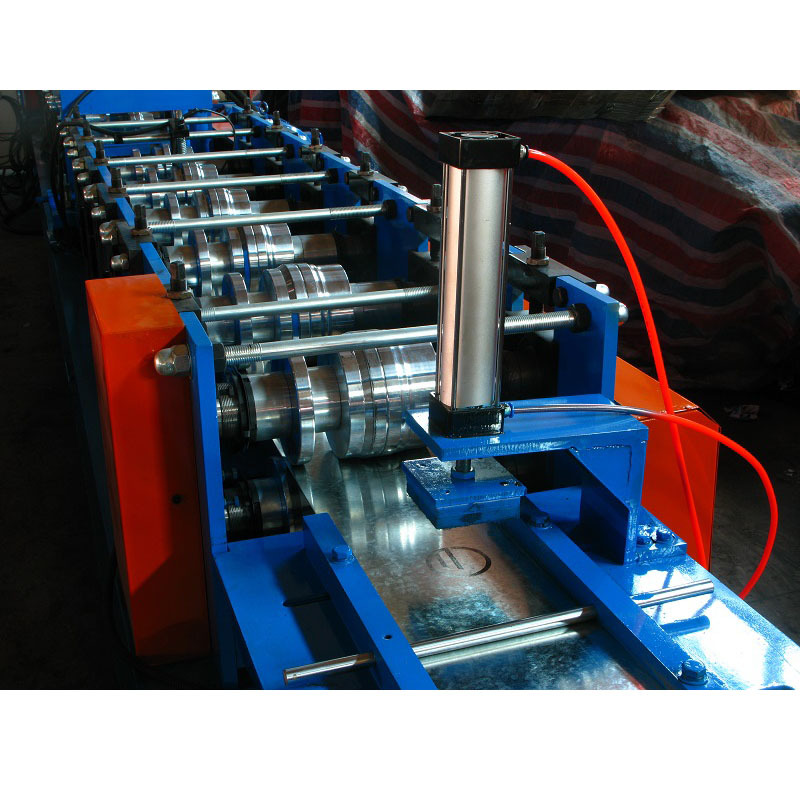

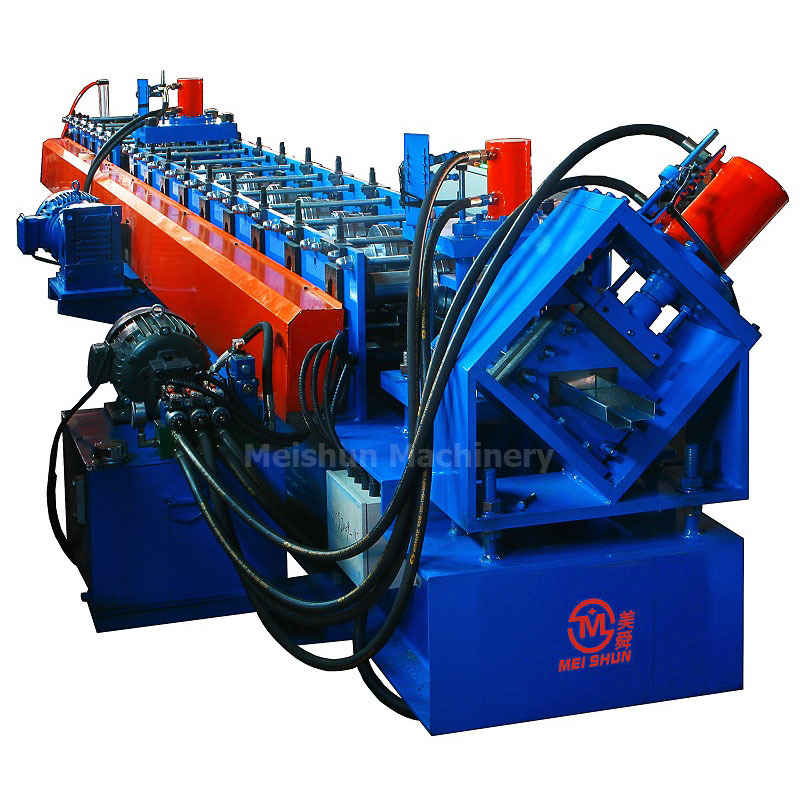

Steel Door Frame Roll Forming Machine
| Equipment Parameters | |
| Equipment Name: | MS47-100/125 Metal Door Frame Roll Forming Machine |
| Forming Steps: | 15 groups roller |
| Equipment Components: | Decoiler - Main Roll Forming Mill - Post Cutter - Hydraulic Station - FLC Control Cabinet - Final Product Rack |
| Equipment Size (L x W x H) | 8.0m x 1.0m x 1.2m |
| Main Motor Power | 7.5KW |
| Hydraulic Motor Power | 3KW |
| Equipment Total Weight | Approx. 6 tons |

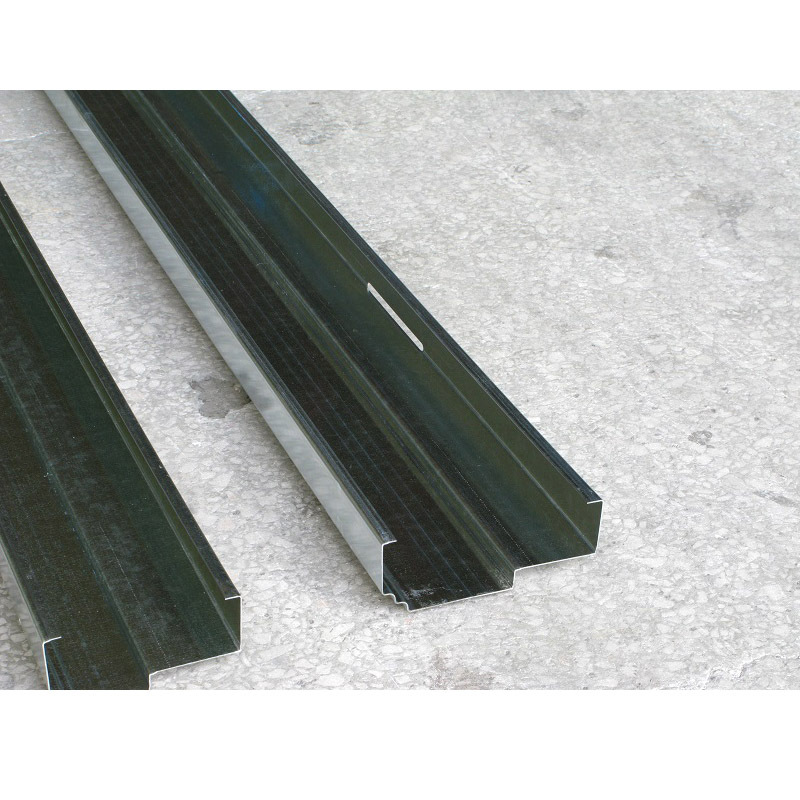

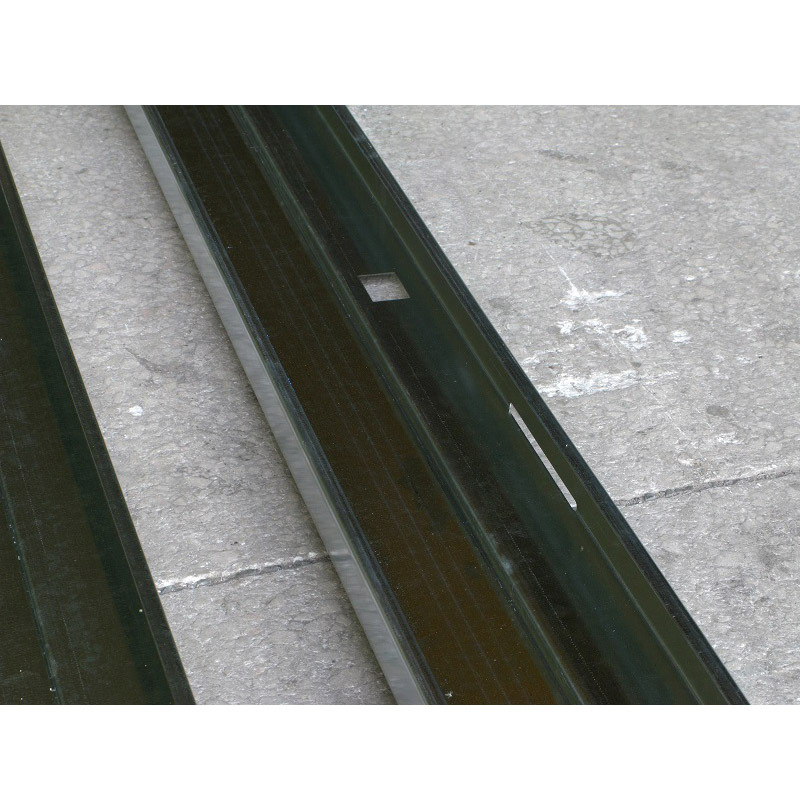

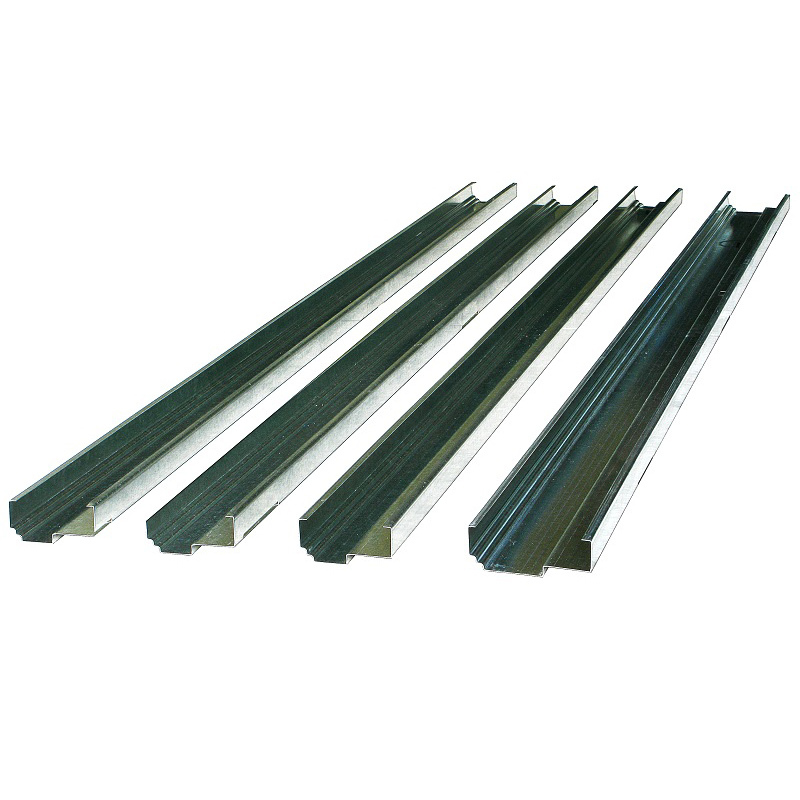

This door frame fully automatic roll forming machine is used to produce steel door window frame with thickness from 0.7mm up to 1.2mm.
We not only manufacture standard steel door and window frame manufacturing machines, but also design and manufacture machines according to the profile drawings or samples from our customers. If customers don't have profile drawings,you can also mail us the samples.
