Angle Bar Roll Forming Machine for Fire Damper
MEI SHUN Angle Bar Roll Forming Machine for Fire Damper
Work with world classic partners are, like TAIDA (PLC). WEILUN (Touch screen). OMRON (Frequency converter and the encoder). Schneider (Electrical components), sure our machines stable and high effective running.
MEI SHUN machinery company, more than 20 high tech talents and more than 20000 square meter production workshop. We have more than 5 machine tool software patent rights, which is make our machine have more competitive advantage.The use of high-performance new materials and advanced computer-aided design technology have upgraded the reliability of the machine again.
We have our own professional processing of the design, develop and manufacture, also have proven machining technique. Each machine with strict quality control.
- Meishun
- Xiamen
- 30-50 days
- Information

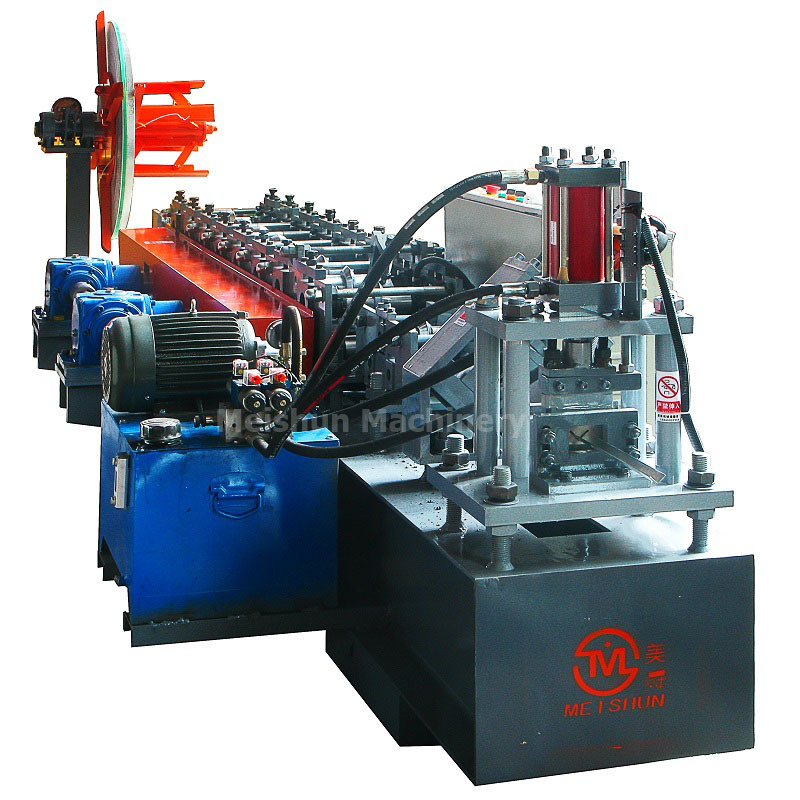

Angle Bar Roll Forming Machine for Fire Damper
We produce Fire Damper Usage Angle Bar Roll Forming Machine.

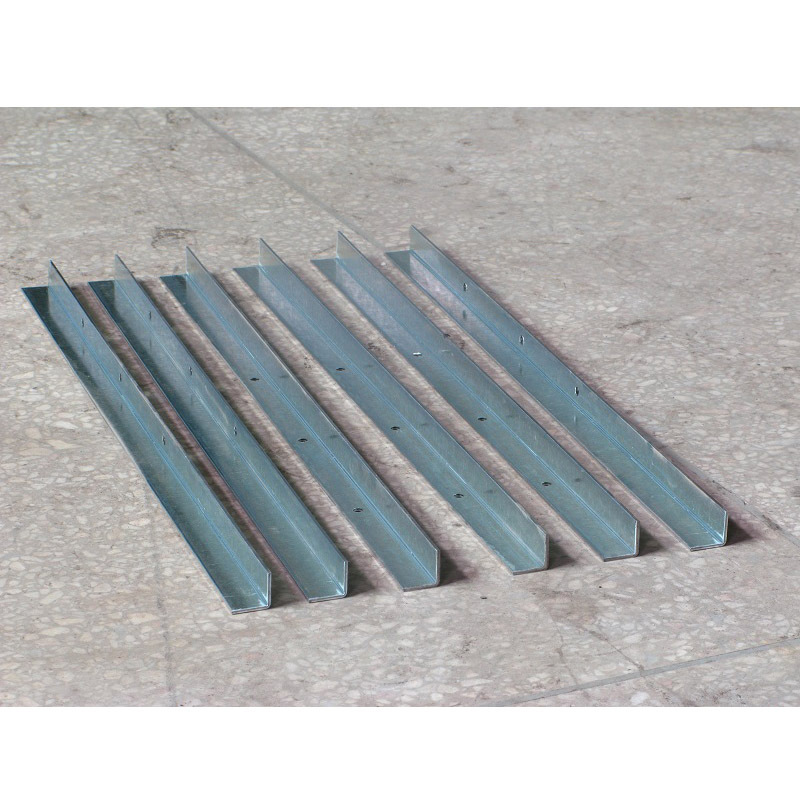

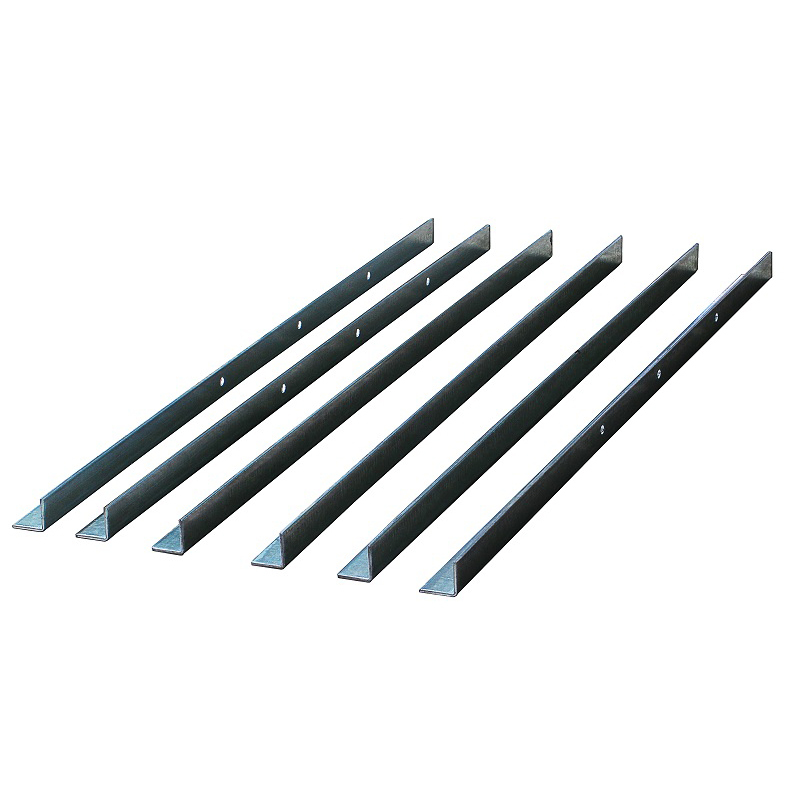

Pre-punched Galvanized Angle is used to frame a sleeve for a fire damper penetration in a wall. Many contractors use this for duct reinforcement. Also used by some shops as external reinforcement angle on duct.
We could customize roll forming machine according to your profile drawing.
| Equipment Parameters | |
| Equipment Name: | MS20x20 Angle Plate Roll Forming Machine for Fire Damper |
| Forming Steps: | 8 groups roller |
| Equipment Components: | Decoiler - Main Roll Forming Mill - Post Cutter - Hydraulic Station - FLC Control Cabinet |
| Equipment Size (L x W x H) | 3.0m x 1.0m x 1.2m |
| Main Motor Power | 4KW |
| Hydraulic Motor Power | 3KW |
| Equipment Total Weight | Approx. 6 tons |
Q1. What's your delivery time?
A1: Our delivery time regularly is like 40-60 days, for some special shaped profile, it needs longer production time, so please send us your profile drawing, then we do evaluate for the exact production time.
Q2. Do you have after-sales support?
A2: Yes, we are happy to give advice and we also have skilled technicians available to give you professional solutions even your machine is not sourced from Meishun.
Q3. Do you only sell standard machines?
A3: No, most of our machines are designed and produced according to customers specifications, with top brand components.
Q4. What will you do if the machine is broken?
A4: Our machine's warranty period is 12 months, if the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
