Fire Damper Blade Roll Forming Machine
MEI SHUN Fire Damper Blade Roll Forming Machine advantage
Our factory with professional processing of the design, develop and manufacture, also have proven machining technique. It makes machine with strict quality control.
The rolling thickness of this forming unit is 2mm respectively
Specifications and dimensions of rolled products
Valve body thickness control 210mm;
Steel strip with plate thickness of 2.0mm;
The width of flange edge is within 33, and the flange edge forming requires 90 ° right angle
According to the size of the valve body, the outer frame can be made into three ways: 1 piece alone, 2 pieces connected and 3 pieces connected;
- Meishun
- Xiamen
- 30-50 days
- Information

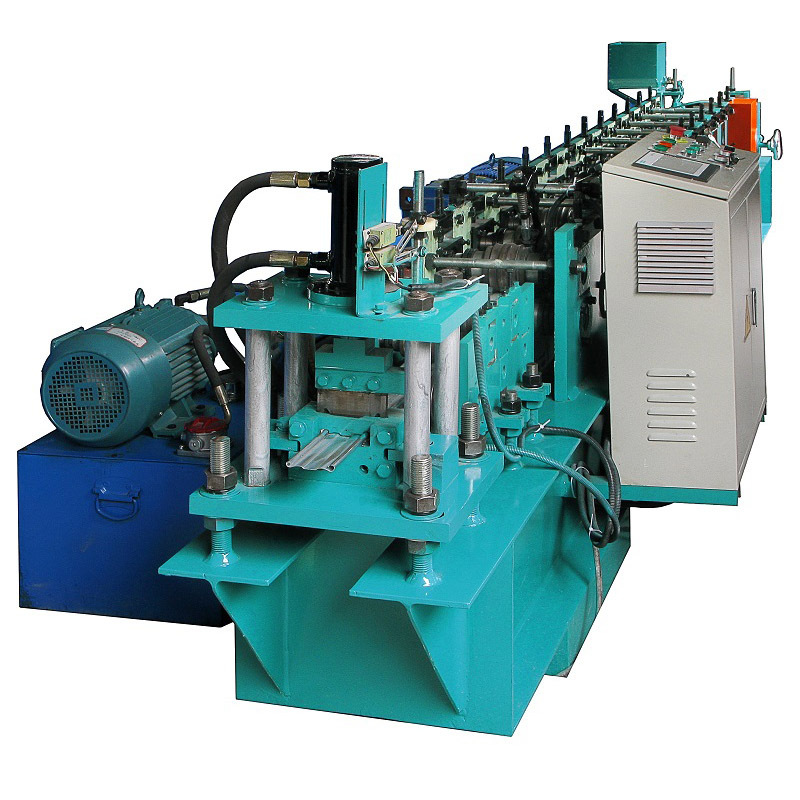

Fire Damper Blade Roll Forming Machine

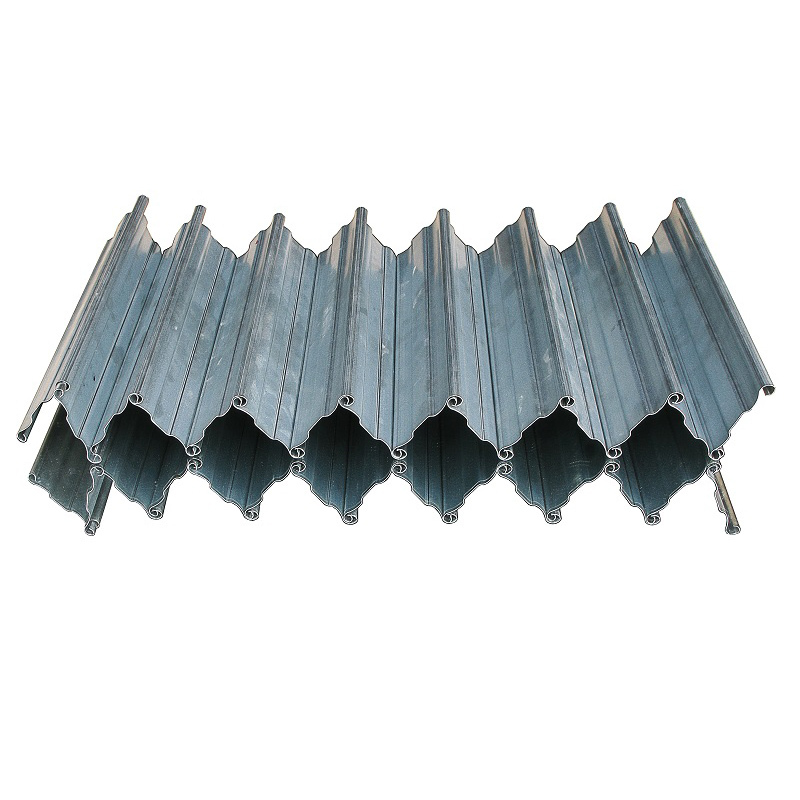

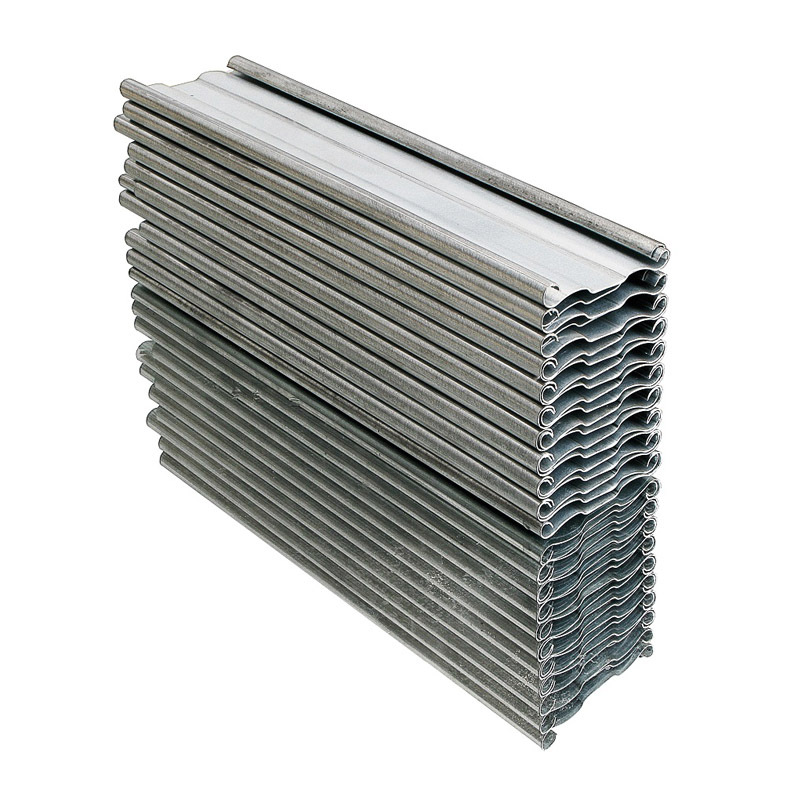

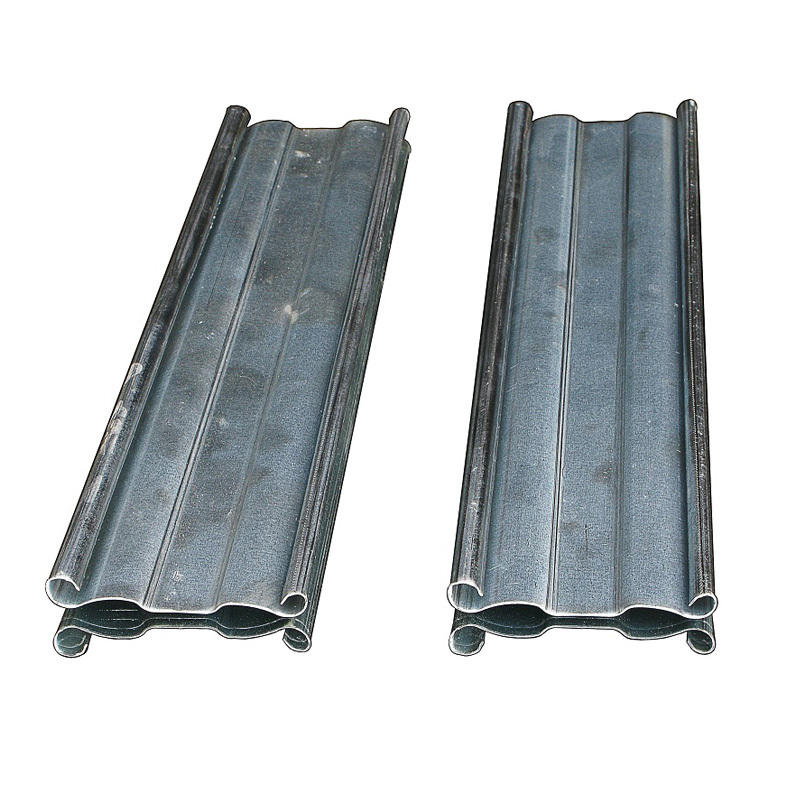

This product specially for HAVC system and the machine is designed to produce fire damper blade that install into damper frame. Meishun Machinery with 30+ Years experience in metal roll forming machine design & production, with our invention panted.
| Equipment Parameters | |
| Equipment Name: | MS10-72 roll forming machine |
| Forming Passes: | 12 groups roller |

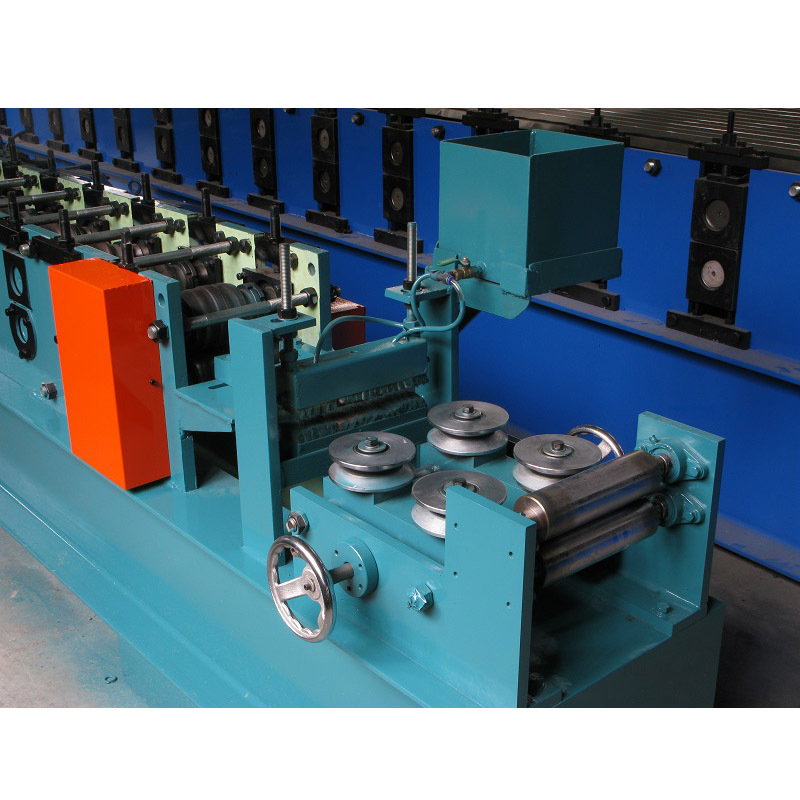

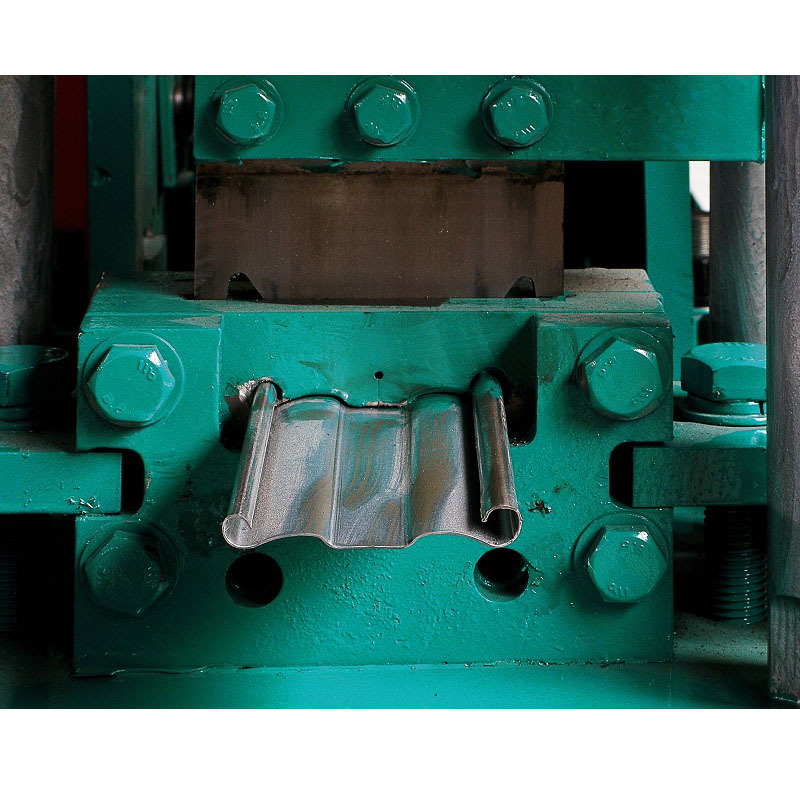

| Equipment Components: | Decoiler - Main Roll Forming Mill - Post Cutting Device - Hydraulic Station - FLC Control Cabinet - Final Products Bracket |
| Equipment Size (L x W x H) | 5m x 0.5m x 1.0m |
| Main Motor Power | 5.5KW |
| Hydraulic Motor Power | 3KW |
| Equipment Total Weight | Approx. 4 tons |
| Metal Material Width | 102mm |
We design, produce and supply the complete roll forming machines, in any design, according to customer's requirements. All part of the roll forming line are manufacturers in our factory from A to Z.
We now could deisgn and produce various kinds of HVAC System roll forming machines, like fire damper metal frame roll forming machine, fire damper blade roll forming machine, C shape ventilation system roll forming machine, Z shape ventilation system roll forming machine, etc.
Our General Manager is a very experienced Engineer in the coll roll forming equipment field, he's the Member of Working Group of Cold Rolling Forming Equipment (SACTC220WG4). That's mean Our company Meishun could give you better technician services, we are good at the roll forming tech. reasearch and development.
Just let's have your profile drawing & parameters need, and we will do customized roll forming machine as you want.
